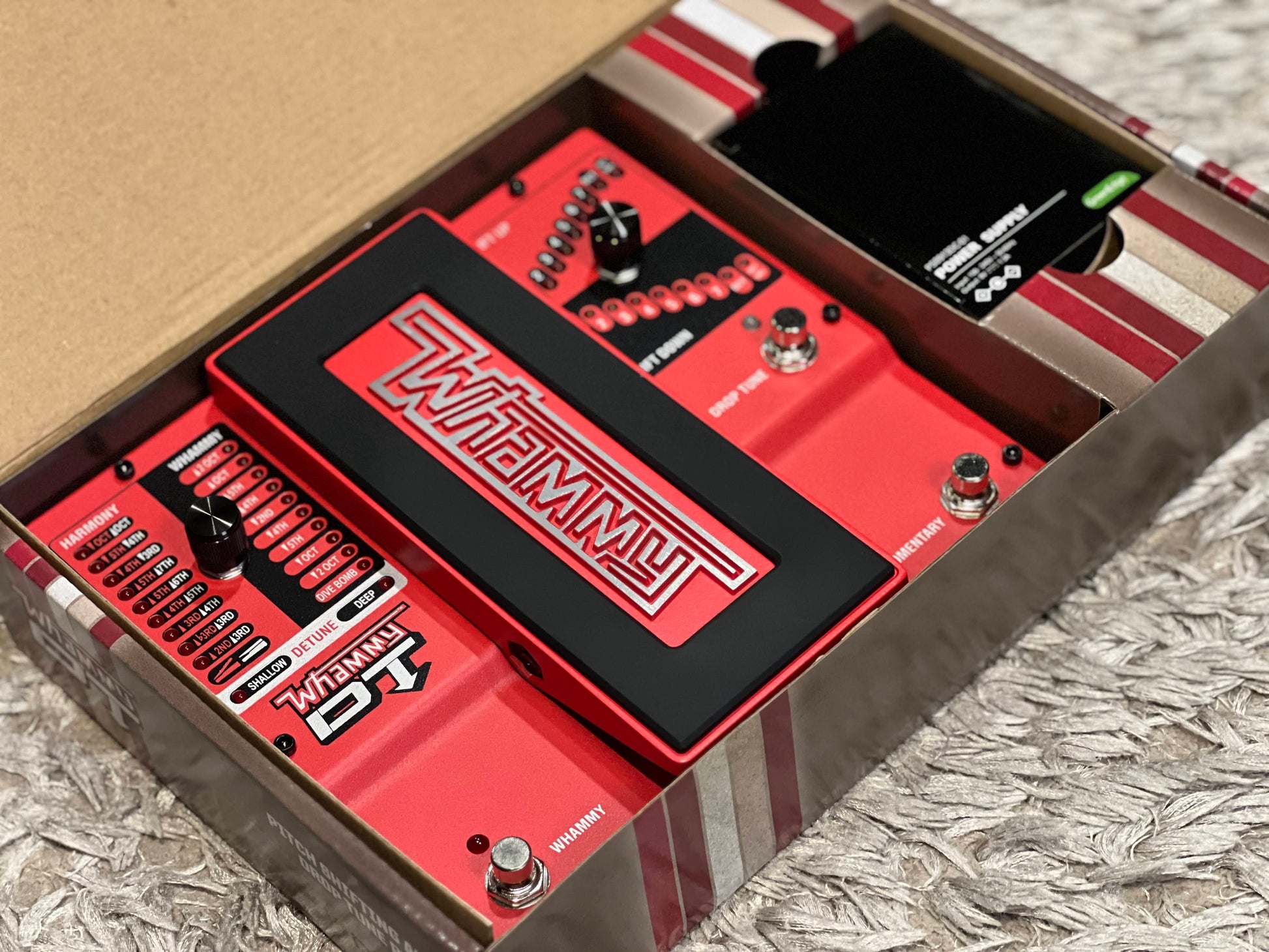

digitech whammy pedal Digitech Whammy DTV-01 Classic Pitch Shifting Pedal With Drop And Rais – nafiriguitar.comStep down or step up 7 half steps or an entire octave The Whammy DT gives you the latest pitch shifting technology to retune your guitar without ever touching the tuning pegs. Step up or down in 7 half steps, or an entire octave with just one setting. Whammy effects capabilities With all the new tuning capabilities, you still have your true pitch shifting effects to sweeten up all moments of your gig. With over 20 years of leading the market in pitch

Step down or step up 7 half steps or an entire octave

The Whammy DT gives you the latest pitch shifting technology to retune your guitar without ever touching the tuning pegs. Step up or down in 7 half steps, or an entire octave with just one setting.

Whammy effects capabilities

With all the new tuning capabilities, you still have your true pitch shifting effects to sweeten up all moments of your gig. With over 20 years of leading the market in pitch shifting, Whammy effects give you the comfort of knowing the pedal you are using is a proven winner.

Momentary footswitch for “hammer-on” and “pull-off” effects

You can instantly create hammer-on and pull-off effects during your performance with the momentary footswitch. Hold it on for quick chord shifts or note changes during your solo or a gritty bridge.

General Specifications :

SAMPLE RATE : 44.1 kHz
FREQUENCY RESPONSE : 20 Hz to 20 kHz
SIGNAL TO NOISE RATIO : > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD : 0.004% @ 1 kHz; ref = 1 dBu w/ unity
A/D CONVERSION : 24 bit
D/A CONVERSION : 24 bit
POWER CONSUMPTION : 2.4 Watts (< 265 mA @ 9 VDC)
POWER ADAPTER : 9 VDC External Adapter

Dimensions :

HEIGHT : 2.5" (64mm)
WIDTH : 6.5" (165mm)
DEPTH : 7.75" (197mm)

Audio Output :

OUTPUT TYPE : 1/4” Unbalanced TS
MAX OUTPUT LEVEL : +10 dBu
OUTPUT IMPEDANCE : 1 kΩ

Audio Input :

INSTRUMENT INPUT TYPE : 1/4” Unbalanced TS
MAX INPUT LEVEL : +5 dBu
INPUT IMPEDANCE : 1 MΩ
MIDI INPUT : 5-Pin Din
